Hydraulic Tail Gate and Ramp Kits.
Phone our Sales and Technical Support Hotline on
0407 581 620.

Tip Tray Conversion Kit to suit Kia K2700 Light Truck
1 only, cancelled order.
Call for more details

FROM $1090
inc GST

Add hydraulic operation to your existing Tailgate or Ramps with this DIY Kit

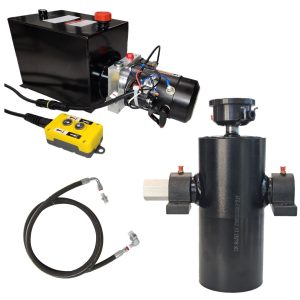

Standard Kit
Single Acting Hydraulic Power Unit
Hydraulic Cylinder
Hydraulic Hose and Fittings
2 Button Hand Piece
Comprehensive User Guide
Concept Drawing to assist with Installation

24 Volt
Double Acting Hydraulic Power Unit
Twin Cylinder Kits

Standard Specifications
2.5" x 18" Hydraulic Cylinder
12 Volt
Steel Tank
4 L/Min Oil Flow (no load)
Electric Valve
Horizontal Mount

We sell a range of hydraulic products specialising in tip tray conversion kits for utes and light trucks. Our premium product range features our full tip tray conversion kits, these kits consists of a sub frame including hydraulics that mount under an existing tray and tips to approximately 46 degrees in around 15 seconds, because the system is operated by a double acting electro-hydraulic circuit it comes down fast without increasing the tray height in most installations.

It has a host of built in safety features including over load protection while lifting, hose burst protection and a unique automatic locking system that mechanically locks the tray in the down position to prevent the tray from tipping in the event of an accident. This lock also eliminates that annoying rattle that most tip trays suffer. Safety pins are provided that lock the tray in the raised position to enable work to be carried out under the tray safely.

The kit is designed to be fitted by anyone with basic tools and metal working knowledge and comes with comprehensive fitting instructions and a technical support phone service available 7 days should fitting assistance be required.

- State of the art technology
- Old fashioned service
- Unbeatable value

contact us about your next tipper project!


Now Exporting to:
New Zealand
Papua New Guinea
United Kingdom
Contact us for details and other locations

NEW - Basic Tip Tray Conversion Kit
Save Big!
